Product Details:
|
| Usage: | Oil Gas Water Industrial | Customized Support: | OEM |
|---|---|---|---|
| Material: | Carbon Steel | Type: | Seamless |
| Nature Of Company: | Manufacuturer | Connection: | Welding, Welded Connection |
| Rand Name: | SOLID | Model Number: | Carbon Steel Pipe Fitting |
| High Light: | 2mm carbon steel pipe elbow,buttwelding carbon steel pipe elbow,2mm api cs elbow |
||

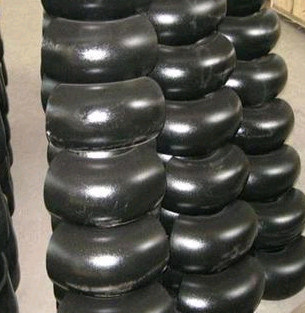

A234 WP5 Alloy Steel Pipe Fittings 90 Deg LR Elbow Seamless Carbon Steel Elbow
Product Description:
Material: Carbon Steel: ASTM/ASME A234 WPB/WPC; A420 WPL6; ASTM A860 WPHY42/52 /60/65/70/75, ST37.0, ST35.8, ST45.8, 10CRMo910, 15CrMo, 12Cr1MoV,etc;
Alloy Steel: A234 WP1/WP2/WP5/WP9/WP11/WP12/WP22/WP91, etc;
Stainless Steel: A403 WP304/304L; WP316/316L/316H;WP347H,etc.
Size: 1/2"~24"; 26"~96"
Wall Thickness: SCH5S~XXS
Standard: ASTM/JIS/DIN/BS/GB
ASME B16.9, ASME B16.28, MSS SP43, DIN2605,DIN2617,DIN2516,JISB2311,etc; or design as the clients' requests;
Usage:Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc
Advantages And Characteristics
The three most common types of elbows in piping are the 45, 90, and 180 degrees (or return elbow), as shown in the image:
Buttweld elbows below 24 inches in diameter are produced by cutting, heating and bending seamless steel pipes; pipe elbows of larger sizes are manufactured, instead, from welded pipes or steel plates.ASME B16.9 buttweld elbows are manufactured in a wide range of dimensions (combinations of outside diameter and wall thickness) to fit ASME B36.10 and ASME B36.19 carbon, alloy and stainless steel pipes of any size between 2 and 48 inches (and above).
Buttweld elbows 45 and 90 degrees can be manufactured in different ways, the main ones are the “mandrel process” and the “cold forming” (other methods are the elliptical forming and the double-seam welding method).
Mandrel Process
Cold forming
Manufacter supplis strightly , of good quality and big quantity
specializes in producing duplex stainless steel and stainless steel pipe fitting ( elbow, tee, reducer, stub end, cap), flange, forged fitting, sanitary fitting etc.
Welsure products are according to ANSI/ASME B16.9, ANSI/ASME B16.5/B16.47, ANSI/ASME B16.11, GB/T12459, GB/T13401, BS, DIN,JIS etc.
We will offer quality products at best price with good services to our customers around the world. We are looking forward to cooperating with you.
Used to the pipes connecting ,
Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc
