NO8800 Socket Weld Pipe Flanges

NO8800 Socket Weld Pipe Flanges
NO8800 Socket Weld Pipe Flanges NO8800 Socket Weld Pipe Flanges NO8800 Socket Weld Pipe Flanges

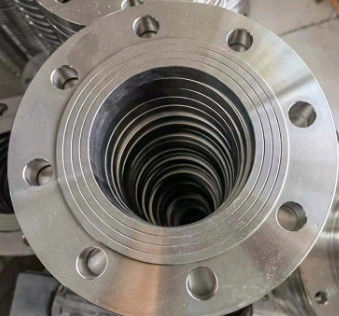

Large Image :  NO8800 Socket Weld Pipe Flanges

Product Details:
Place of Origin: China
Brand Name: YiHang
Certification: API/ISO
Model Number: YH-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: Wooden box / Pallet
Delivery Time: 3-10 Days
Payment Terms: L/C, T/T
Supply Ability: 5000 Tons/Month

NO8800 Socket Weld Pipe Flanges

Warranty: 3 Years Model Number: 1/2"-60"
Connection: Welding Brand Name: YiHang
Types: Flange Production Method: Forging
Usage: Pipe Connection Origin: China
High Light:

NO8800 Socket Weld Pipe Flanges


ANSI B16.48 Socket Weld Pipe Flanges


NO8800 welding neck flange

Nickel Base Flange Customized Super Large Socket Weld Flange

Product Description:

Nickel Base Flange Customized Super Large Socket Weld Flange

Name: alloy flange / NO8800 flange
Material: NO8800/ NO8810 / NO8825 / NO6600
Standard: JIS/ ANSI /DIN /GB
Item: PL/ WN /SO /BL
Size: 1/4"-100" / Customize
Specificaton: with production line ,we can spply good quality and big quantity NO8800 / NO8810 / NO8825 / NO6600 flanges ,include JIS DIN ANSI GOST GB EN standards and PL WN SO BL items .we have export to American India Arab Singapore Malaysia for many years.the chemical and quality is passed inspection.

Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve.


Standard: ANSI B16.5 // ANSI B16.47 // MSS SP44 // ANSI B16.36 // ANSI B16.48

Types : Welding Neck Flanges // Slip on Flanges //


Threaded Flanges, Socket Welding Flanges // Blind Flanges //


Orifice Flanges // Lap Joint Flanges // Ring Joint Flanges //


Long Welding Neck Flanges // Figure 8 Blanks//Anchor Flanges


grade : Class150 // Class300 // Class400//Class600 // Class900 //

Class1500 // Class2500

Size : 1/2" NB ~ 48" NB


Standard: DIN2527,DIN2566,DIN2573,DIN2576,DIN2641,DIN2642,DIN2655,DIN2656,DIN2627,DIN2628,DIN2629,DIN2631DIN2632,DIN2633,DIN2634,DIN2635,DIN2636,DIN2637DIN2638,DIN2673

Types : Welding neck Flanges // Slip on Flanges // Threaded Flanges //

Socket Welding Flanges // Blind Flanges


Grade :6Bar,10Bar,16Bar,25Bar,40Bar Size: DN10 ~ DN1000


Types : SOP type; SOH type; SW type; WN type ; LJ type; TR type

Pressure Class: 5K, 10K, 16K, 20K, 30K

Material : Rst37.2, S235JRG2, C22.8, SS400, SF440A, A105Size: 10A ~ 1500A


Standard: BS 4504 SEC 3.1 :

Welding neck Flanges(111/134),

Hubbed Slip on Flanges(112) ,

Hubbed Threaded Flanges(113),

Lapped Pipeend FlangesE(133),

Plate Flanges(101),Loose Plate Flanges(102), L

oose Plate With Weld-neck Flanges (104),

Blank Flanges(105)

Standard: BS 4504(PART-1)Pressure grade: PN2.5 ~ PN40

Standard: BS 10 :

Welding neck Flanges,

Plate Slip-on Flanges,

Screwed Boss Flanges,

Slip on Boss Flanges,

Blind FlangesTypes: Table: D, E, F, HSize: 1/2" NB ~ 48"NB

5.EN 1092-1:2001 FLANGES

Type : TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5

(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip- on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)

Pressure Class: PN2.5 // PN6 // PN10 // PN16 // PN25 // PN40 // PN63 // PN100

Size : 1/2" ~ 48"


Types : UNI2276 2277 2278 6083 6084 6088 6089 2299 2280

2281 2822 2283. .. (PLSOWNBLTH) FLANGES

Pressure Class: PN0.25 ~ 250MAP

Size : 1/2" ~ 48"


Types : Plate Flanges(GOST12820-80); Blind Flanges(GOST12836-67);

Wedling neck Flanges(GOST12821-80); Steel Butt-weld flanges

Pressure Class: PN0.6 ~ PN10,0 (100 /2)

Size : 1/2" ~ 48"

Carbon steel, stainless steel, alloy steel, aluminum, copper, etc.
Surface treatment
Plating(zinc,nickel,chrome), electrophoresis, painting, powder coating,electrostatic spraying, hot dip galvanized, polishing
Size or shape
According to customer drawing or sample
Range of Material Thickness
It is 0.2-10mm for punching, stamping, forming, and no thickness limit for welding.
Processing Range
Sheet Metal Fabrication,CNC Machining Laser Cutting, Stamping, Deep Drawing, Bending, Punching, Welding
Service mode
ISO9001:2008, TS16949, EN 15085, quality management system
Focus on high end market products
All over the world


NO8800 Socket Weld Pipe Flanges 0NO8800 Socket Weld Pipe Flanges 1NO8800 Socket Weld Pipe Flanges 2
